TPS7A3401EVM-042 -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

TPS7A3401EVM-042

仓库库存编号：

2379667

技术数据表：

(EN)

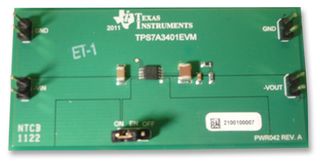

The TPS7A3401EVM-042 is an evaluation module and reference design for TPS7A3401 negative voltage, low dropout DC/DC regulator with an adjustable output voltage for loads up to 200mA. This particular evaluation module configuration contains a single linear regulator with internal thermal and current limit shutdowns, and enable (disable) circuitry in a 3mmx5mm, MSOP 8, thermally enhanced PowerPAD package. The regulator, including external components, is capable of delivering up to -200mA to the load, depending on the input output power dissipation, at an operating input voltage down to -20V. The evaluation module output voltage is adjustable by an external resistor divider from -1.2V to -17V. The resistor divider is preset to provide VOUT approximately equal to -15V. The TPS7A3401 linear regulator is suitable for cost effective, post dc/dc converter regulation. By filtering out the output voltage ripple inherent to dc/dc switching conversion, increased system performance is provided.

• Input voltage range from -3V to -20V
• Adjustable output from -1.18V to -17V (Pre set to -15V)
• 500mV at 100mA dropout voltage
• Stable with ceramic capacitors greater then 10uF
• CMOS logic level compatible enable pin
• Fixed current limit
• Thermal shutdown Protection
