TMDSEMU560U -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

TMDSEMU560U

仓库库存编号：

1791961

技术数据表：

(EN)

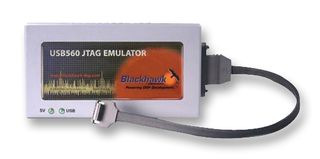

The TMDSEMU560U is a Blackhawk USB560 JTAG emulator of XDS560 class, next generation emulation controller with a high speed USB 2.0(480Mbytes/s) host interface. The USB560 is compatible with the XDS560 emulator features including, but not limited to, lightning speed code downloads and advanced event triggering capabilities to find and fix real time software problems. The USB560 uses 20 pin (compact TI) JTAG header connector and is also compatible with the Blackhawk XDS560 cable and pod assembly and Blackhawk XDS560 trace system. The USB560 pod is compact (3.1 x 5.8 x 1.1 inches), portable and backwards compatible to USB 1.1. The USB560 has additional features and benefits, including support for C2000 devices and compatibility with a remote Ethernet software add-on that allows LAN/WAN access to the emulator across an Ethernet network. The Blackhawk USB560 supports boundary scan definition language (BSDL). BSDL is the standard modelling language for boundary scan devices.

• XDS560 JTAG emulator products are available with popular host interfaces such as PCI bus and USB
• TMDSEMU560U is supplied with power supply, USB cable, 12inch compact 20 pin JTAG cable
• Blackhawk XDS560 JTAG emulators can support boundary scan definition language
• XDS560 family of JTAG based emulators support a wide range of processors
• XDS560 family is designed to achieve high download speeds and is ideal for larger applications
• BSDL is the standard modelling language for boundary scan devices
