SN65HVD22EVM -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

SN65HVD22EVM

仓库库存编号：

2081126

技术数据表：

(EN)

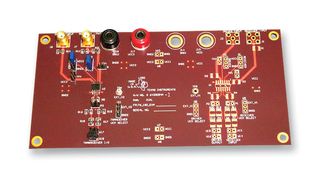

The SN65HVD22EVM is an evaluation module will allow designers to develop and analyze data transmission systems using the SN65HVD2x family from TI's. This series of devices, including the SN65HVD20, SN65HVD21, SN65HVD22, SN65HVD23 and SN65HVD24, comply with TIA/EIA-485. Also, these devices use the industry standard 176 and 180 footprint, allowing standard devices such as the SN75176 or SN75ALS180 to be installed onto the evaluation module. The HVD22EVM has the SN65HVD22 transceiver installed on the evaluation module, however other SN65HVD2x devices can be sampled and be added to the evaluation module PWB. The evaluation module can be used to evaluate device parameters while acting as a guide for board layout. The board allows for the connection of a 100ohm controlled impedance cable of varying lengths. This provides the designer with a functional tool for his circuit evaluation that will facilitate the successful first pass design of an end product.

• The EVM allows for the quick, easy and accurate evaluation of TI's HVD2x family of RS 485 products
• Screw type SMA jacks and bergstik headers serve as the I/O connections
• Banana jacks serve as the DC power input terminals
• PWB also, facilitates different medium interconnections and use of various transmission topologies
• SN65HVD22 evaluation module PWB hardware
