PICOSCOPE 3405D MSO -

制造商：

PICO TECHNOLOGY PICO TECHNOLOGY

制造商产品编号：

PICOSCOPE 3405D MSO

仓库库存编号：

2432912

技术数据表：

(EN)

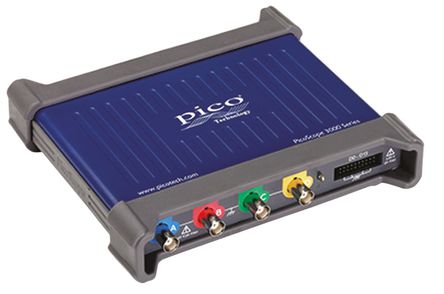

The PICOSCOPE 3405D MSO is a 100MHz 4-channel Mixed-signal Oscilloscope includes 16 digital inputs so that you can view digital and analog signals simultaneously. The digital inputs can be displayed individually or in named groups with binary, decimal or hexadecimal values shown in a bus-style display. A separate logic threshold from -5 to +5V can be defined for each 8-bit input port. The digital trigger can be activated by any bit pattern combined with an optional transition on any input. Advanced logic triggers can be set on either the analog or digital input channels or both to enable complex mixed-signal triggering. The PicoScope 3000D series PP935 mixed-signal oscilloscope offers the high-performance specifications required by engineers in the lab or on the move. This oscilloscope offers 4 analog channels. The flexible, high-resolution display options enable you to view and analyze each signal in fine detail.

• Small, lightweight and portable
• Deep buffer memory up to 512 MS
• 1GS/s real-time sampling
• Fast waveform updates
• Built-in arbitrary waveform generator
• USB 3.0 connected and powered
• Automatic measurements
• Mask limit testing
• Advanced triggers
• Serial decoding

• Math channels
• Spectrum analyzer
