MIKROE-1133 -

制造商：

MIKROELEKTRONIKA MIKROELEKTRONIKA

制造商产品编号：

MIKROE-1133

仓库库存编号：

2431440

技术数据表：

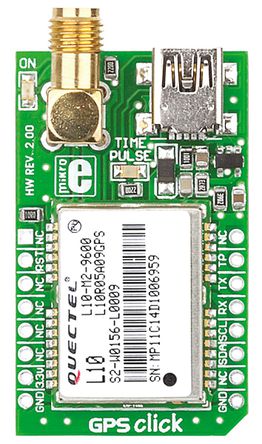

The MIKROE-1133 is a GPS Click L10 accessory board in mikroBUS form factor. The mikroBUS is specially designed pin out standard with SPI, I2C, Analogue, UART, Interrupt, PWM, Reset and Power supply pins. This GPS Click L10 accessory board is a compact solution for adding GPS functionality to user's device. It features Quectel L10, high performance MTK positioning engine. This board can be interfaced with a microcontroller through UART or I2C connection or data can be acquired using PC application through USB connection. It features connector compatible with active and passive antennas and can operate on 3.3V power supply only.

• MikroBUS form factor enables easy integration
• Tracking sensitivity of -165dBm
• 4Mbits flash memory jamming
• 5Hz update rate
• Low tracking power consumption of 38mA
• Supports 210 PRN channels with 66 search channels and 22 simultaneous tracking channels
