B2962A -

制造商：

KEYSIGHT TECHNOLOGIES KEYSIGHT TECHNOLOGIES

制造商产品编号：

B2962A

仓库库存编号：

2491333

技术数据表：

(EN)

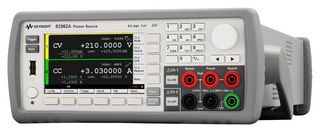

The Keysight B2962A 6.5 Digit Low Noise Power Sources are a new generation of power supply/sources offering best-in-class precision, wide bipolar output ranges and extremely low noise. They also possess graphing capabilities and other innovative features that enable tests and evaluation that conventional power supply/sources cannot do. This makes them ideal companion products for other instruments such as oscilloscopes, network analyzers, spectrum analyzers, frequency counters, digital multi meters, nano-voltmeters, etc. The Keysight B2962A can provide a power supply and source solution that meets the difficult measurement challenges faced by researchers, designers and developers working on advanced components, circuits and materials.

• 6.5 digit 1-channel source
• Wide and bipolar voltage/current sourcing (100nV - 210V / 10fA - 10.5A, 31.8W)
• Best-in-class noise performance (10μVrms, 1nVrms/√Hz) with external filter
• Arbitrary waveform capability supporting seven built-in functions and user defined (1mHz - 10kHz)
• 4.5 digit built-in voltage/current monitoring capability (minimum resolution: 10μV / 1pA)
• Programmable output resistance with voltage / current output characteristics emulation capability
• Graphical user interface on 4.3" colour LCD supporting time domain voltage/current monitoring
• LXI Core Conformant, USB 2.0, GPIB, LAN and digital I/O interface

参考价格及参考库存
