09 03 264 6421 -

制造商：

HARTING HARTING

制造商产品编号：

09 03 264 6421

仓库库存编号：

1189271

技术数据表：

(EN)

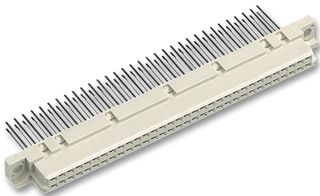

The 09 03 264 6421 is a 64-position 2-row straight female DIN 41612 Signal Connector with flange, type C, 2.54mm pitch, solder pins termination and solder length at 13mm. Gold over nickel plated copper alloy contacts. The DIN 41612 connector is the standard for board-to-board and cable-to-board connections as both data and power connectors. HARTING offers a wide range of standard connectors complying with DIN 41612 and IEC 60 603-2. Depending on the application, the 3 to 160 way connectors are offered with various termination methods, each contact capable of carrying from 2A to 40A. HARTING differentiates between DIN Signal and DIN Power connectors depending on the maximum allowed working current per contact up to 2A for DIN Signal and over 2A for DIN Power connectors. HARTING's range har-bus? 64 features 160 contacts and is an extension of the 3 row 96 way DIN 41612 C type range with 2 additional rows.

• PL 2 according to IEC 60603-2 400 mating cycles
• UL94V-0 Flammability rating
