CFTBN/1 -

制造商：

CAMDENBOSS CAMDENBOSS

制造商产品编号：

CFTBN/1

仓库库存编号：

3882792

技术数据表：

(EN)

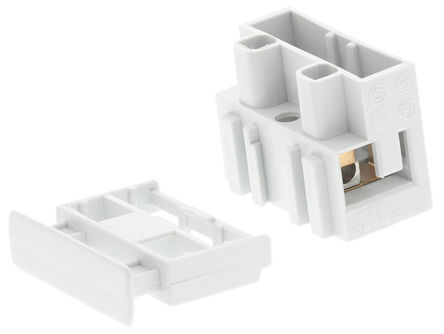

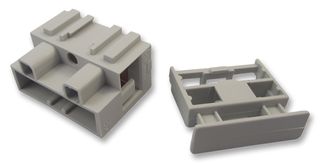

The CFTBN/1 is a 1-pole 450V/20A Fused Terminal Block with UL94-V0 flame retardant PA moulding, nickel plated brass terminal, phosphor bronze fuse clip, stainless steel wire protector, M3 screw, interlocking fuse holder, earth screw facility, wire protector on fused pole. It features anti rotation spigot, wire protectors on earth pole, 16mm fixing pitch and easily cut to size. It accepts 4mm2 (2.5mm2 with wire protector) cable entry. It meets creepage and clearance requirements of IEC (8mm). UL, IMQ, VDE, CE, SEMKO, FIMKO approved, on non earth version.

• 250VAC/13A Fuse holder rating
• IP20 Finger protection rating

参考价格及参考库存
