EVAL-ADXL362Z-S -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-ADXL362Z-S

仓库库存编号：

2254956

技术数据表：

(EN)

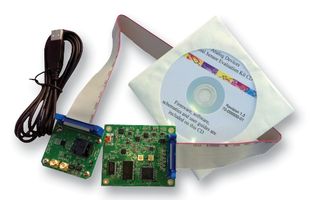

The EVAL-ADXL362Z-S is an evaluation board for evaluating ADXL362 MEMS accelerometer. The ADXL362 is an ultralow power, three axis MEMS accelerometer that consumes less than 2μA at a 100Hz output data rate and 270nA when in motion triggered wake up mode. Unlike accelerometers that use power duty cycling to achieve low power consumption, the ADXL362 does not alias input signals by undersampling, it samples the full bandwidth of the sensor at all data rates. The ADXL362 always provides 12bit output resolution, 8bit formatted data is also provided for more efficient single byte transfers when a lower resolution is sufficient. Measurement ranges of ±2g, ±4g, and ±8g are available, with a resolution of 1mg/LSB on the ±2g range.

• Ultralow power
• High resolution of 1mg/LSB
• Acceleration sample synchronization via external trigger
• Onchip temperature sensor
• SPI digital interface
• Measurement ranges selectable via SPI command
• Built in features for system level power savings
• Autonomous interrupt processing
• Wide supply and I/O voltage range from 1.6V to 3.5V
• Power can be derived from coin cell battery
