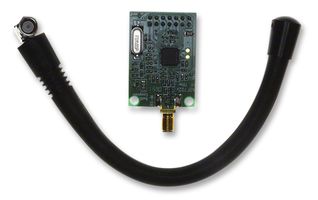

The EVAL-ADF7020-1DBZ4 is an daughter board used to evaluate the ADF7020-1 high performance, ISM band, FSK/ASK transceiver IC with of frequency 400MHz - 440MHz boards. The ADF7020-1 is a low power, highly integrated FSK/GFSK/ASK/OOK/GOOK transceiver designed for operation in the low UHF and VHF bands. The ADF7020-1 uses an external VCO inductor which allows you to set the operating frequency anywhere between 135MHz and 650MHz. Typical range of the VCO is about 10% of the operating frequency. A complete transceiver can be built using a small number of external discrete components, making the ADF7020-1 very suitable for price-sensitive and area-sensitive applications. The transmit section contains a VCO and low noise fractional-N PLL with output resolution of <1 ppm. This frequency agile PLL allows the ADF7020-1 to be used in frequency hopping spread spectrum (FHSS) systems.
- Low power, low IF transceiver
- 135MHz to 650MHz, direct output
- 80MHz to 325MHz, divide-by-2 mode
- 0.15Kbps to 200Kbps, FSK
- 0.15Kbps to 64Kbps, ASK
- Programmable output power from -20dBm to +13dBm in 63 steps
- Low power consumption of 17.6mA in receive mode and 21mA in transmit mode
- On-chip 7-bit ADC and temperature sensor
- On-chip VCO and fractional-N PLL
- Digital RSSI and Integrated TRx switch
