EVAL-ADAS3023EDZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-ADAS3023EDZ

仓库库存编号：

2334869

技术数据表：

(EN)

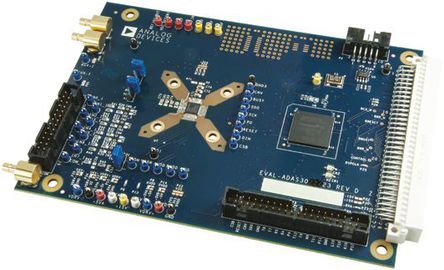

The EVAL-ADAS3023EDZ is an evaluation kit for ADAS3023 data acquisition system. The ADAS3023 is a complete 16bit successive approximation based analog to digital data acquisition system. This device integrates an 8 channel low leakage track and hold, a high impedance programmable gain instrumentation amplifier stage with high common mode rejection, a precision 16bit successive approximation ADC and precision 4.096V reference. It is capable of converting two channels simultaneously up to 500, 000 samples per second (500KSPS) throughput. On board components include a high precision, buffered band gap 4.096V reference (ADR434), a reference buffer (AD8032), passive signal conditioning circuitry, and an FPGA for deserializing the serial conversion results and configuring the ADAS3023 via a 4 wire serial interface. The evaluation board is intended to be used with the converter evaluation and development (CED) board, EVAL-CED1Z, a USB based capture board connected to P4, the 96 pin interface.

• Versatile analog signal conditioning circuitry
• On board reference, clock oscillator and buffers
• Converter evaluation and development board (EVAL-CED1Z) compatible
• PC software for control and data analysis (time and frequency domain)
• Ease of use
• No latency/pipeline delay (SAR architecture)
• User programmable input ranges
• High input common mode rejection
• Simultaneous sampling selection of 2, 4, 6, and 8 channels
• High impedance 8 channel input
