EVAL-AD7195EBZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-AD7195EBZ

仓库库存编号：

2096112

技术数据表：

(EN)

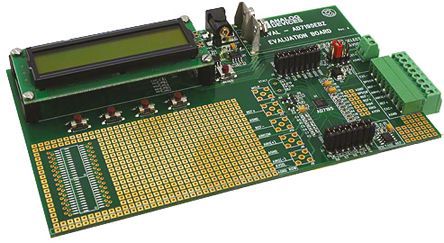

The EVAL-AD7195EBZ is a fully featured evaluation board for the AD7195, 4.8kHz, Ultralow noise, 24bit sigma delta ADC. The evaluation board can be operated in standalone mode or connected to a PC via a standard USB interface. The AD7195 is a complete analog front end for low frequency measurement applications. It contains two differential inputs, Four pseudo differential inputs and includes a low noise instrumentation amplifier, a reference detect, and a low-side power switch. The evaluation board can be operated in complete standalone, battery-powered mode. The LCD display is used to display the conversion data. When the board is connected to PC via a standard USB interface, the PC software allows the graphical display of real time data, logs the data into a text file, allows the user to modify the internal settings of the AD7195, and generally helps in understanding the part features and performance.

• Full featured evaluation board for the AD7195
• Standalone interface using microcontroller and LCD display
• It provides PC software for control of AD7195 using USB interface
• It has various linking options
• It provides programmable gain (1 to 128)
• It provides AC or DC sensor excitation
• Offset drift of 5nV/°C and gain drift of 1ppm/°C
• Automatic channel sequencer
• Output data rate of 4.7Hz to 4.8kHz
