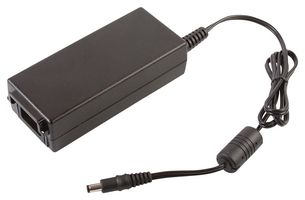

The ALM65US19C2-8 from XP Power is a 65W, AC to DC external plug-in adaptor. The AJM65 series desktop adaptor complies with energy efficiency level VI standard and low earth leakage current. This medical external power supply is fully approved to international medical safety standards. It has been designed with very high efficiency and low standby power, enabling it to meet the latest environmental legislation. The unit has a fully sealed enclosure complying with IP32 and a smooth surface finish making it easier to wipe down in a clinical setting.
Input voltage range from 80VAC to 264VAC
Output voltage is 19V
Input frequency range from 47Hz to 63Hz, input current is 1.2/0.6A, inrush current is 60/120A
Output current is 3.4A
Total regulation is ±5%, efficiency is 88%
Operating temperature range from 0°C to 60°C
Dimension is 125.5mm x 55.5mm x 33.5mm
Class II IEC 320-C8 inlet
UL ANSI/AAMI ES 60601-1, CSA C22.2 no. 60601, EN60601-1, CB IEC60601-1 medical safety approvals
UL60950-1, EN60950-1, IEC60950-1 IT safety approval
