XK-USB-AUDIO-U8-2C-AB -

制造商：

XMOS XMOS

制造商产品编号：

XK-USB-AUDIO-U8-2C-AB

仓库库存编号：

2433468

技术数据表：

(EN)

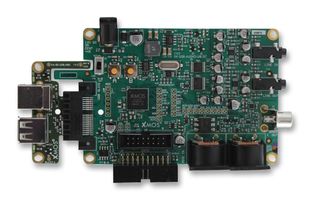

The XK-USB-AUDIO-U8-2C-AB is a Multi Function Audio (MFA) reference design board. This board is a complete stereo USB audio device reference design for high resolution audio applications. The MFA reference design is based around the XS1-U6 multicore microcontroller. The XS1-U6 is a XMOS xCORE-USB device with an integrated high speed USB 2.0 PHY and 6 logical cores delivering 500MIPS of deterministic and responsive processing power. For exploiting the flexible programmability of the xCORE architecture, the MFA reference design supports multiple USB audio streaming formats (PCM, DSD & DoP) at the high sampling rates (PCM up to 384kHz, DSD up to x128) and bit depths (PCM up to 32bits) demanded by the audiophile market. The guaranteed hardware response times of xCORE technology always ensure low latency bit perfect audio streaming to and from USB host.

• Complete hardware and software USB audio reference design
• MIDI input and output
• High speed USB device with optional full speed fall back
• USB audio class 2.0 device with optional audio class 1.0 fall back
• Self or bus powered
• Rapid development and code reuse
• Low jitter, high quality audio capture and playback
• Supports Windows, Mac OS X, Android OS
• Royalty free software stack
