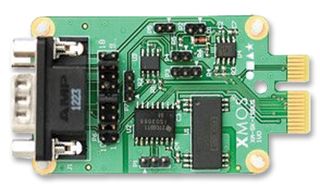

The XA-SK-ISBUS is a industrial serial bus slice card for use with slicekit. The IS-BUS slice card provides flexible serial connectivity for industrial applications. It includes transceivers for CAN at 1Mbps, LIN at 20Kbps as well as a RS485 at 12Mbps, backed up by associated xSOFTip blocks. All three interfaces may be used simultaneously when connecting via the 0.1inch headers. Alternatively one interface can be routed to the DB9 connector.
- Unique multicore microcontroller architecture
- Hardware response from programmable device allowing software implementation
- Any serial protocol up to 60MHz pin speed, higher speeds with external SERDES
- Fully tested soft IP, including, UART, RS485, USB, SPI, CAN, I2C, PWM, IEEE 802. Ethernet, ModBus
- Ample headroom for other real time tasks, multi axis motor control, HMI features, motion control
