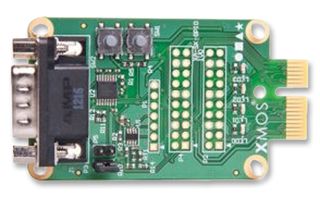

The XA-SK-GPIO is a GPIO slice card for use with slicekit. This GPIO slice card provides a collection of features to slicekit including LEDs, buttons and A to D inputs. Combined with xSOFTip it allows simple input/output functions to be evaluated easily and provides I/O expansion to connect sliceKIT to other systems. A pair of 1bit ports (1 each for RX and TX) are used with an RS232 transceiver and DB9 connector to provide a standard UART terminal running up to 115.2KBaud which can be connected to any PC COM port or serial to USB adapter. An ADC with a standard two wire interface is provided, with an external linearised thermistor connected to the first ADC channel. The remaining three ADC channels are exposed on testpoints.
- Access to four LEDs via a 4bit port
- Two push buttons are connected via a 4bit port
- One RS232 serial cable with DB9 connector
- Four channel A to D via I2C interface
- Thermistor input via A to D
- A small prototyping area is provided
