2273-205 -

制造商：

WAGO WAGO

制造商产品编号：

2273-205

仓库库存编号：

2428571

技术数据表：

(EN)

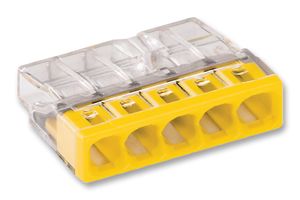

The 2273 series PUSH WIRE? Connector allows fast wiring for solid conductors safely due to the spring clamp connection. The 2273 series COMPACT PUSH WIRE? connector is for junction boxes are around 50% smaller than the original 273 series WAGOs used successfully in billions of applications. This saves a great deal of space for electrical installations. The individually combinable connection cross sections from 0.5 to 2.5mm2, nominal current up to 24A and clear, unique colour coding for quick access provide you with perfect installation conditions. The transparent enclosure allows visual inspection for correct wiring. You can use the clear port to check if the conductors have been stripped properly, ensuring protection against accidental contact. The test slots are optimized for all standard test probes.

• COMPACT PUSH WIRE? Connector for Junction Boxes
• Minimize space requirements while ensuring maximum convenience, ease of use, safety and reliability
• Transparent enclosure allows visual inspection for correct wiring
• Use the clear port to check if the conductors have been stripped properly
• Test slots are optimized for all standard test probes
• Cross sections from 0.5 to 2.5 mm2
• Nominal current up to 24A
• Unique colour coding for quick access

参考价格及参考库存
