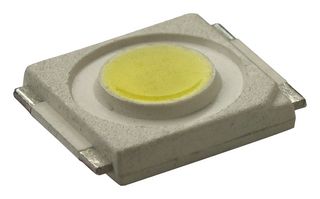

The VLMW712T3U3US-GS08 from Vishay is a Little Star 1W power SMD white LED in 6mmx 6mm x 1.5mm (L x W x H) compact outline. It rank among the most robust and light efficient LEDs in the market. Using recent and reliable nitride phosphor technology, the colour stability has been improved. With its extremely high level of brightness and the package height profile which is only 1.5mm Little Star is highly suitable for both conventional lighting and specialized application such as signal lights, traffic lights, channel lights, tube lights and garden lights among others.
InGaN technology
120° viewing angle, angle of half intensity is ±60°
Designed for high current drive up to 350mA
Low thermal resistance RthJP of 10K/W
Qualified according to JEDEC moisture sensitivity level 2a
Compatible with IR reflow soldering
ESD withstand voltage up to 2KV according to JESD22-A114-B
Natural white LED colour, high flux output up to 113lm
