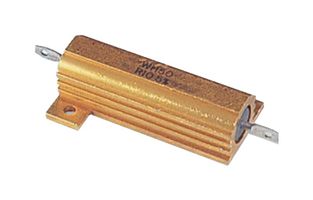

The RH0505R000FE02 is an aluminum housed solder lug Wirewound Resistor with molded construction for total environmental protection and complete welded construction. Copper-nickel alloy or nickel-chrome alloy element and ceramic, steatite or alumina, depending on physical size of the Core. Available in non-inductive styles (type NH) with Ayrton-Perry winding for lowest reactive components. Power rating of 50W and temperature coefficient of ±50ppm/°C. For RH005 through RH050 size terminal finish - Tin/lead is 60/40 Sn/Pb w/Nickel under plate and Lead (Pb)-free is Ni/Pd/Au, finish is on copper clad steel core terminal.
Mounts on chassis to utilize heat-sink effect
Excellent stability in operation (<1% change in resistance)
