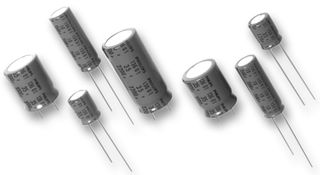

The MAL215060221E3 is a radial leaded Aluminum Electrolytic Capacitor with cylindrical aluminum case and a blue sleeve insulation. The 150 RMI series aluminum capacitor features excellent ripple current capability, very low impedance and low ESR in smaller case sizes. Suitable for smoothing, filtering and buffering.
- Polarized aluminum electrolytic capacitor, non-solid electrolyte
- Long useful life
- 730mA at 100Hz/105°C Rated RMS ripple current
- 80μA (after 2 minutes) Maximum leakage current
- 0.097R at 100kHz/+20°C and 0.680R at 100kHz/-40°C Maximum impedance
