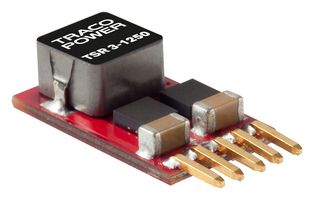

The TSR 3 series from Tracopower are non isolated step down switching regulators. These DC to DC converters can also be operated with negative output voltage and they come in a very compact open frame package of 15.5mm x 9.4mm x 6.2mm. The high efficiency of up to 95% admits full load operation up to 50°C and up to 85°C with 50% current reduction. A low standby current, very wider input range and no requirement for heatsink give these switching regulators a significant advantage over linear regulators. TSR 3 series feature remote on/off input, short circuit protection and overtemperature protection. These models are ideal point of load regulators for highly reliable applications.
High performance 3A switching regulator
Suitable for positive and negative output circuit
Adjustable output voltages
Wide input voltage ranges from 2.5VDC to 5.5VDC, 4.5VDC to 14VDC and 10VDC to 30VDC
Low output ripple and noise
Operating temperature range -40°C to 85°C
Available in 600KHz and 300KHz switching frequency
