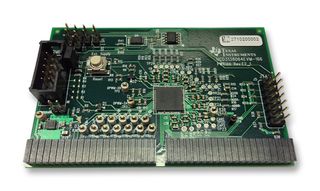

The UCD3138064EVM-166 evaluation module functions as a control card for UCD3138064 digital controller for isolated power applications. The UCD3138064 is a digital power supply controller offering superior levels of integration and performance in a single chip solution. The EVM can be used either as a stand alone board to study the UCD3138064 or as a control card for implementing a fully regulated power converter based on topologies such as PFC, half bridge resonant LLC and phase shift full bridge. This is implemented by downloading appropriate firmware into the UCD3138064 EVM and establishing interface with a suitable power stage board from the end user. In order to assist in evaluation of common isolated power topologies, this evaluation module has been designed to interface seamlessly with UCD3138PFCEVM-026 digital PFC pre regulator EVM, UCD3138PSFBEVM-027 digital phase shifted full bridge DC to DC converter EVM and UCD3138LLCEVM-028 digital LLC half bridge DC to DC converter EVM.
- PMBus connector to PC computer connection through USB to GPIO adapter
- Includes onboard SPI and I2C accessible EEPROMs for additional memory storage
- 40 pin digital signal connector to connect digital signals to power converters
- 40 pin analog signal connector to connect analog signals to power converters
- LED indicator
- Rich test points to facilitate device evaluation, system design and circuit and firmware debugging
- JTAG connector
