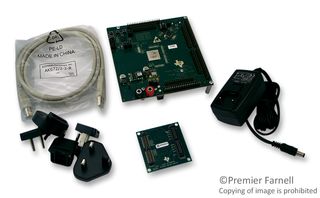

The TSW1250EVM evaluation module is designed to evaluate the performance of AFE58xx series devices. It includes a high speed LVDS deserializer and analysis system which provide a comprehensive set of hardware and user interface software to effectively evaluate the performance of a high speed, analog to digital converter (ADC). Particularly, the high speed ADC that employs a low voltage differential signal (LVDS) format for the data converters output data. The AFE58xx series devices for ultrasound systems have a high speed ADC with LVDS outputs for the digitized data, which is perfectly suitable to be evaluated by TSW1250 system. With a high quality, low jitter clock and a high quality input frequency provided to the AFE58XX evaluation module.
- Hardware and software effectively evaluates high speed ADC with LVDS output
- Xilinx 4 LX25 FPGA
- 64K capture depth with USB transfer
- Designed to operate from a single supply voltage of greater than 6VDC
