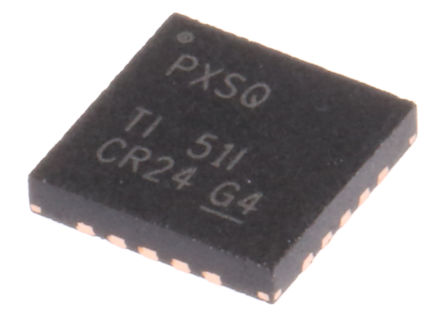

The TPS7A4700RGWT is a positive voltage (+36 V), ultralow-noise (4 μVRMS) low-dropout linear Voltage Regulator, capable of sourcing a 1A load. The regulator output voltages are user-programmable (up to 20.5V) using a printed circuit board (PCB) layout without the need of external resistors or feed-forward capacitors, thus reducing overall component count. The regulator output voltage can be configured with an user-programmable PCB layout (up to 20.5V) or adjustable (up to 34V) with external feedback resistors.
- 4μVRMS (10Hz, 100kHz) Output Voltage Noise
- 82dB (100Hz) and >55dB (10Hz, 10MHz) Power-supply Ripple Rejection
- No external feedback resistors or feed-forward capacitors required ANY-OUT? version
- +1.4 to +20.5V Output Voltage Range
- 307mV at 1A Dropout Voltage
- CMOS Logic Level-compatible Enable Pin
- Built-in Fixed Current Limit and Thermal Shutdown
- Green Product, No Sb/Br
自动化与过程控制, 测试与测量, 传感与仪器, 医用, 音频, 信号处理, 工业, 电源管理
