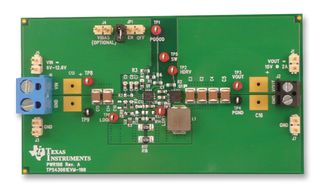

The TPS43061EVM-198 evaluation module is a fully assembled and tested circuit for evaluating the TPS43061 Synchronous Boost DC-DC Controller. The EVM operates from a 6V to 12.6V input (9V nominal) and provides a 15V output at 2A. This design uses the CSD86330Q3D synchronous power block for high efficiency and power density.
Integrated high-side and low-side gate drivers optimized for low Gate charge NexFET
5 μA Shutdown Current
Adjustable 100 kHz to 1 MHz switching frequency with synchronization capability
(EN)
