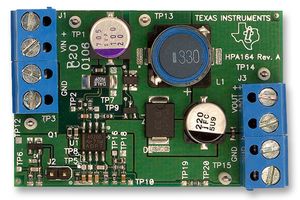

The TPS40200EVM-001 is an evaluation module for TPS40200 non synchronous buck DC/DC controller. The evaluation module is designed to to operate with an 8V to 16V input and to produce a regulated 3.3V output with a load current from 0.125A to 2.5A. The evaluation module demonstrates the use of the TPS40200 in a typical buck converter application. The board sacrifices some packing density to provide ample test points for module evaluation. This evaluation module can be modified to support output voltages from 0.7V to 5V by changing a single feedback resistor.
300KHz switching frequency
Input ranges from 8V to 16V
3.3V output, adjustable with single feedback resistor
0.125A to 2.5A steady state output current
Switching frequency is 300KHz
Single P-channel MOSFET and single rectifier
Two layer, 1.4inch x 2.12inch, surface mount design with all components on one side
Convenient test points for probing critical waveforms and noninvasive loop response testing
