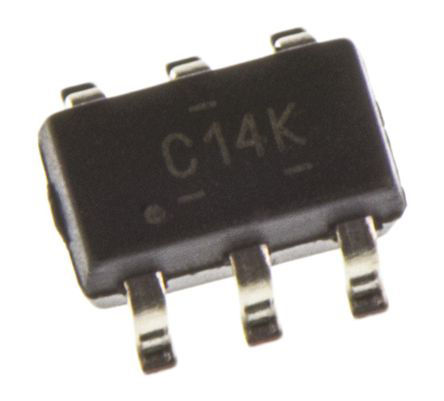

The TPL5010DDCT is an Ultralow Power Timer with watchdog functionality and manual reset. Watchdog feature is ideal for system wake up in duty cycled or battery powered applications. In such systems the μC timer can be used for system wake-up, but if the timer sleep current is high, up to 60 to 80% of the total system current can be consumed by the μC timer in this sleep mode. Consuming only 35nA, the TPL5010 can replace the functionality of the integrated μC timer and allow the μC to be placed in a much lower power mode. Such power savings enable the use of significantly smaller batteries making it well suited for energy harvesting or wireless sensor applications. The TPL5010 provides selectable timing intervals from 100ms to 7200s and is designed for interrupt-driven applications. Some standards (such as EN50271) require implementation of a watchdog for safety and the TPL5010 realizes this watchdog function at almost no additional power consumption.
