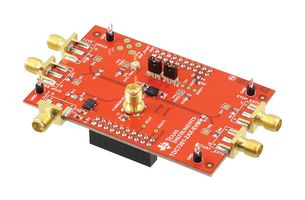

The TDC7201-ZAX-EVM is an ultra measurement range time-to-digital converter evaluation module. This evaluation module allows users to test and evaluate the TDC7201 time-to-digital converter. The TDC7201 can be used for accurate time measurements in LIDAR applications. The EVM is a BoosterPack plug-in module for the MSP430F5529 LaunchPad. The TDC7201-ZAX-EVM has two pairs of SMA connectors for the START and STOP inputs. The EVM comes with a user-friendly Graphic User Interface (GUI) to modify the registers, display time of flight and export data in CSV format.
EVM connects with MSP430 LaunchPad (MSP-EXP430F5529LP)
User friendly GUI for quick evaluation and data capture
