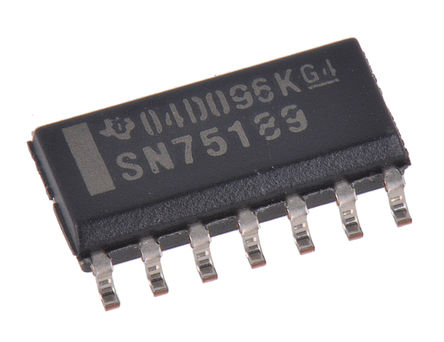

The SN75189D is a quadruple monolithic low-power Schottky Line Receiver designed to satisfy the requirements of the standard interface between data-terminal equipment and data-communication equipment as defined by TIA/EIA-232-F. A separate response-control (CONT) terminal is provided for each receiver. A resistor or a resistor and bias-voltage source can be connected between this terminal and ground to shift the input threshold levels. An external capacitor can be connected between this terminal and ground to provide input noise filtering.
- Built-in input hysteresis (double thresholds)
- Response control that provides input threshold shifting and input noise filtering
- 3 to 7kR Input resistance
- ±30V Input signal range
- Green product and no Sb/Br
计算机和计算机周边, 通信与网络, 建筑自动化, 便携式器材
