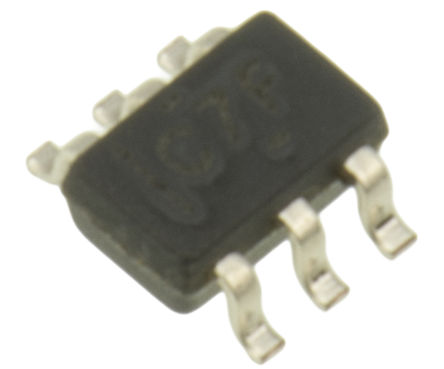

The SN74LVC2G17DCKR is a dual Schmitt-trigger Buffer, designed for 1.65 to 5.5V VCC operation. The device contains two buffers and performs the Boolean function Y = A. The device functions as two independent buffers, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. This device is fully specified for partial-power-down applications using I off. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
- Schmitt-trigger Inputs Provide Hysteresis
- Supports 5V VCC Operation
- Input Accepts Voltage to 5.5V
- 5.4ns at 3.3V Maximum Propagation Delay Time
- Low-power Consumption, 10μA Maximum ICC
- ±24mA Output Drive at 3.3V
- Typical VOLP (Output Ground Bounce) <0.8V at VCC = 3.3V, TA = 25°C
- Typical VOHV (Output VOH Undershoot) >2V at VCC = 3.3V, TA = 25°C
- Ioff Supports Live Insertion, Partial-power-down Mode
- Operation and Back-drive Protection
- Latch-up Performance Exceeds 100mA Per JESD 78, Class II
- Green Product, No Sb/Br
