SN74HC541N -

缓冲器/线路驱动器, 74HC541, 2V至6V, DIP-20

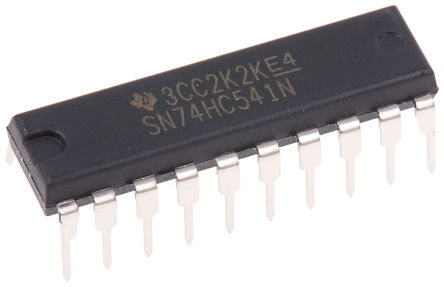

声明：图片仅供参考，请以实物为准！

制造商：: TEXAS INSTRUMENTS TEXAS INSTRUMENTS
制造商产品编号：: SN74HC541N
仓库库存编号：: 1470755
技术数据表：: (EN)

订购热线： 400-900-3095 0755-21000796, QQ:800152669, Email:sales@szcwdz.com

由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

SN74HC541N产品概述

The SN74HC541N is an Octal Buffer and Line Driver with 3-state outputs. This octal buffer and line driver features the performance of the HC240 device and a pinout with inputs and outputs on opposite sides of the package. This arrangement greatly facilitates printed circuit board layout. The 3-state outputs are controlled by a two-input NOR gate. If either output-enable (OE1\ or OE2\) input is high, all eight outputs are in the high-impedance state. The HC541 device provides true data at the outputs.

High-current 3-state outputs interface directly with system bus or can drive up to 15 LSTTL loads
Data flow-through pinout (all inputs on opposite side from outputs)
80μA Maximum low power consumption
10ns Typical tpd
±6mA Output drive at 5V
1μA Maximum low input current

工业

SN74HC541N替代选择

制造商产品编号
仓库库存编号
制造商 / 说明 / 规格书
操作

逻辑系列/标号	74HC541
逻辑器件类型	缓冲、非反相
封装类型	DIP
针脚数	20引脚
电源电压最小值	2V
电源电压最大值	6V
逻辑芯片系列	74HC
逻辑芯片标号	74541
工作温度最小值	-40°C
工作温度最高值	85°C
封装	每个
产品范围	-
汽车质量标准	-
MSL	-
