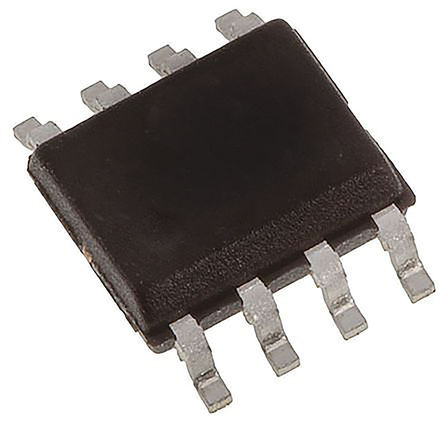

The SN65HVD78D is a 3.3V robust Half-duplex Driver and Receiver. The bus pins are robust to ESD events with high levels of protection to human-body model and IEC contact discharge specifications. Each of these devices combines a differential driver and a differential receiver which operate from a single 3.3V power supply. The driver differential outputs and the receiver differential inputs are connected internally to form a bus port suitable for half-duplex (two-wire bus) communication. This device features a wide common-mode voltage range making the devices suitable for multi-point applications over long cable runs.
>±15kV HBM Protection
>±12kV IEC 61000-4-2 Contact discharge
>±4kV IEC 61000-4-4 Fast transient burst
Large receiver hysteresis (80mV) for noise rejection
Low unit-loading allows over 200 connected nodes
Low power consumption
<2μA Low standby supply current
ICC <1mA Quiescent during operation
5V Tolerant logic inputs compatible with 3.3 or 5V controllers
