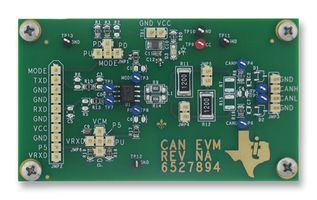

The SN65HVD255DEVM is a SN65HVD255D CAN transceiver evaluation module. This CAN transceiver meets the ISO1189-2 high speed CAN (Controller Area Network) physical layer standard. It is designed for data rates in excess of one megabit per second (Mbps) in short networks, and enhanced timing margin and higher data rates in long and highly loaded networks. The device provides many protection features to enhance device and CAN network robustness. The SN65HVD257 adds additional features, allowing easy design of redundant and multi topology networks with fault indication for higher levels of functional safety in the CAN system. The CAN evaluation module may be user reconfigured for use with the all CAN transceiver families SN65HVD23x, SN65HVD25x, SN65HVD10x0 and SN65HVDA54x by replacing the transceiver and setting jumpers on the evaluation module.
- Meets the requirements of ISO11898-2
- Turbo CAN short propagation delay times and fast loop times higher data rates in network
- I/O voltage range supports 3.3V and 5V MCUs
- Ideal passive behaviour when unpowered
- Bus pins are high impedance (no load to operating bus)
- Logic pins are high impedance
- Power up/down with glitch free operation on bus
- ESD protection of bus pins
- HBM ESD protection exceeds ±12kV
- Bus fault protection -27V to 40V
