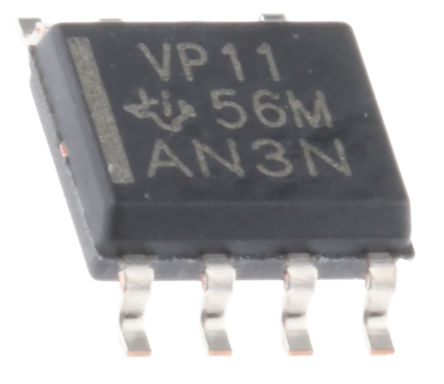

The SN65HVD11D is a 3.3V Differential Transceiver combines a 3-state differential line driver and differential input line receiver that operate with a single power supply. The device is designed for balanced transmission lines and meet or exceed ANSI standard TIA/EIA-485-A and ISO 8482:1993. This differential bus transceivers are monolithic integrated circuits designed for bidirectional data communication on multipoint bus-transmission lines. The drivers and receivers have active-high and active-low enables, respectively, that can be externally connected together to function as direction control. Very low device standby supply current can be achieved by disabling the driver and the receiver.
Bus-pin ESD protection exceeds 16kV HBM
1/8 Unit-load
Optional driver output transition times for signalling rates
Bus-pin short-circuit protection
1μA Typical low-current standby mode
Open-circuit, idle-bus and shorted-bus fail safe receiver
Thermal shutdown protection
Glitch-free power-up and power-down protection for hot-plugging
