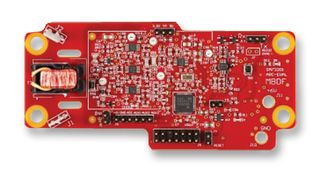

The SM73201-ARC-EV/NOPB is an evaluation platform for SM73201, a 16bit successive approximation register analog to digital converter with a maximum sampling rate of 250KSPS. The converter features a differential analog input with an excellent common-mode signal rejection ratio of 85dB, making the SM73201 suitable for noisy environments. The performance of the SM73201 is specified over temperature at clock rates of 1MHz to 5MHz and reference voltages of 2.5V to 5.5V. The SM73201 is available in a small 10 lead VSSOP package. The high accuracy, differential input, low power consumption, and small size make the SM73201 ideal for direct connection to bridge sensors and transducers in battery operated systems or remote data acquisition applications.
- Renewable energy grade
- Specified performance from 50KSPS to 250KSPS
- Separate digital input/output supply
- True differential input
- External voltage reference range of 0.5V to VA
- SPI/QSPI/MICROWIRE compatible serial interface
电源管理, 替代能源, 传感与仪器, 自动化与过程控制
