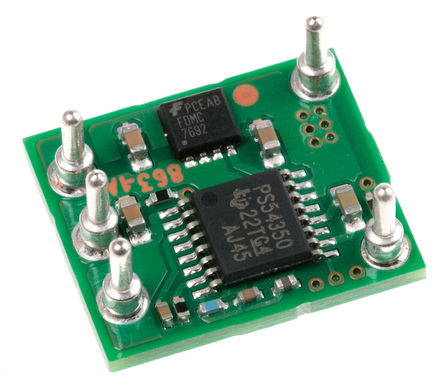

The PTH08080WAH is a highly integrated Switching Regulator Module that delivers up to 2.25A of output current. The input voltage range of the PTH08080WAH is from 4.5V to 18V, allowing operation from either a 5V or 12V input bus. Using state-of-the-art switched-mode power-conversion technology, the PTH08080W can step down to voltages as low as 0.9V from a 5V input bus, with less than 1W of power dissipation. The output voltage can be adjusted to any voltage over the range, 0.9V to 5.5V, using a single external resistor. Operating features include an under voltage lockout (UVLO), on/off inhibit, overcurrent protection and over temperature protection. Target applications include telecommunications, test and measurement applications and high-end consumer products.
- Enable Tracking
- Efficiencies up to 93%
- On/Off Inhibit
- Fixed Soft Start
- Undervoltage Lockout (UVLO)
- Output Overcurrent Protection (Nonlatching, Auto-Reset)
- Over temperature Protection
