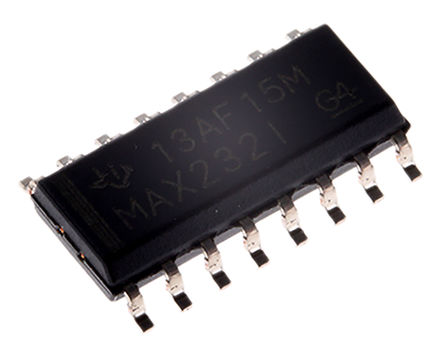

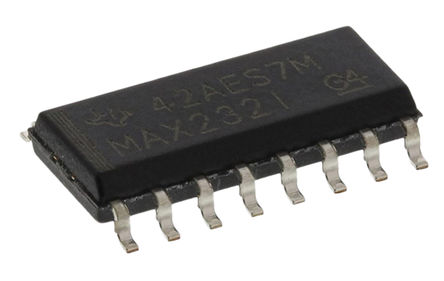

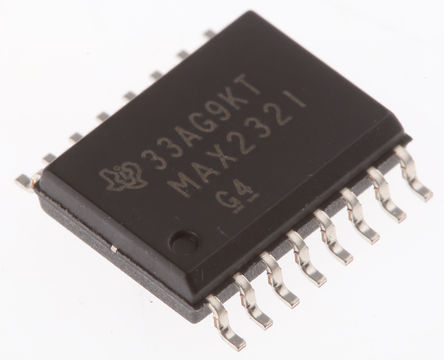

The MAX232ID is a dual EIA-232 drivers/receiver in 16 pin SOIC package. This device includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from single 5V supply. Each receiver converts TIA/EIA-232-F inputs to 5V TTL/CMOS levels. The MAX232 has typical threshold of 1.3V, typical hysteresis of 0.5V and can accept ±30V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels.
Meets or exceeds TIA/EIA-232-F and ITU recommendation V.28
Operates from single 5V power supply with 1μF charge pump capacitors
