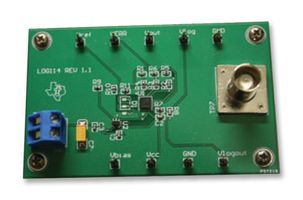

The LOG114EVM is a ready to use platform for evaluating the performance of the LOG114 in various configurations. The LOG114 is specifically designed for measuring low level and wide dynamic range currents in communications, lasers, medical, and industrial systems. The device computes the logarithm or log ratio of an input current or voltage relative to a reference current or voltage (logarithmic trans impedance amplifier). The evaluation module comes configured to operate on a single 5V power supply. The circuit used in the evaluation module is designed to operate over a wide range of input currents (10nA to 10mA) and scales the output voltage from 1.15V to 2.75V. Additional circuitry includes a precision level shifter and high current linearity correction section.
- Easy to use
- High speed + precision
- Wide input dynamic range
- Operates on a single 5V supply
- Two scaling amplifiers
- 2.5V reference
- Stabile over temperature
