LMZ31530EVM-002 -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

LMZ31530EVM-002

仓库库存编号：

2377521

技术数据表：

(EN)

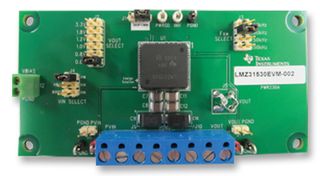

The LMZ31530EVM-002 is an evaluation module for LMZ31530 30A simple switcher power module. The LMZ31530 simple switcher power module is an easy to use integrated power solution that combines a 30A DC to DC converter with power MOSFETs, a shielded inductor and passives into a low profile, QFN package. This total power solution allows as few as three external components and eliminates the loop compensation and magnetics part selection process. The LMZ31530 offers the flexibility and the feature set of a discrete point of load design and is ideal for powering a wide range of ICs and systems. The evaluation module provides the user with convenient test points and connectors for full evaluation of the LMZ31530 device.

• Monitor full operation of the LMZ31530 up to 30A
• Jumper selectable Vout
• Jumper selectable switching frequency
• Split rail input voltage capable
• INH and PWRGD test points
