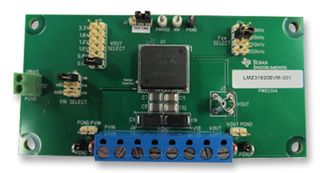

The LMZ31520EVM-001 is an evaluation module for LMZ31520 20A simple switcher power module. The LMZ31520 simple switcher power module is an easy to use integrated power solution that combines a 20A DC to DC converter with power MOSFETs, a shielded inductor and passives into a low profile, QFN package. This total power solution allows as few as three external components and eliminates the loop compensation and magnetics part selection process. The LMZ31520 offers the flexibility and the feature set of a discrete point of load design and is ideal for powering a wide range of ICs and systems. The evaluation module provides the user with convenient test points and connectors for full evaluation of the LMZ31520 device.
- Monitor full operation of the LMZ31520 up to 20A
- Jumper selectable Vout
- Jumper selectable switching frequency
- Split rail input voltage capable
- INH and PWRGD test points
