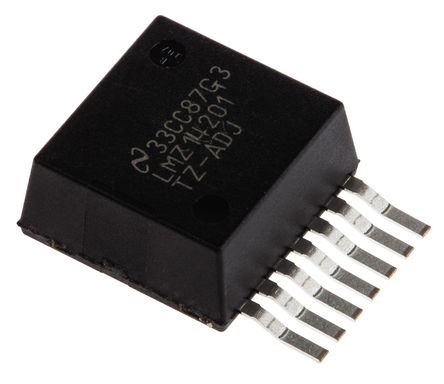

The LMZ14201TZ-ADJ/NOPB is a SIMPLE SWITCHER? 6 to 42V 1A Power Module that can drive up to 1A load with exceptional power conversion efficiency, line and load regulation and output accuracy. The LMZ14201 can accept an input voltage rail of 42V and deliver an adjustable and highly accurate output voltage as low as 0.8V. The power module only requires three external resistors and four external capacitors to complete the power solution. The power module is a reliable and robust design with the following protection features thermal shutdown, input UVLO, output overvoltage protection, short-circuit protection, output current limit and allows start-up into a pre-biased output. A single resistor adjusts the switching frequency up to 1MHz.
Integrated shielded inductor
Flexible start-up sequencing using external soft-start, tracking and precision enable
Protection against in-rush currents and faults such as input UVLO and output short-circuit
Single exposed pad and standard pin-out for easy mounting and manufacturing
