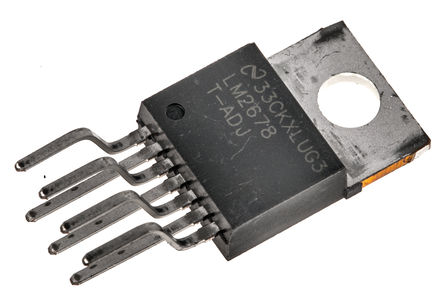

LM2678T-ADJ -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

LM2678T-ADJ

仓库库存编号：

9486186

技术数据表：

(EN)

The LM2678T-ADJ is a SIMPLE SWITCHER? high efficiency Step-down Voltage Regulator provides all of the active functions for a step-down (buck) switching regulator capable of driving up to 5A loads with excellent line and load regulation characteristics. High efficiency (>90%) is obtained through the use of a low ON-resistance DMOS power switch. This regulator is available in an adjustable output version. The SIMPLE SWITCHER? concept provides for a complete design using a minimum number of external components. A 260KHz high fixed frequency oscillator allows the use of physically smaller sized components. A family of standard inductors for use with this regulator is available from several manufacturers to greatly simplify the design process. The LM2678 series also has built in thermal shutdown, current limiting and an ON/OFF control input that can power down the regulator to a low 50μA quiescent current standby condition. The output voltage is ensured to a ±2% tolerance.

• 120mR DMOS output switch
• Simple and easy to design with external components
• 50μA Standby current when switched off
• ±2% Maximum output tolerance over full line and load conditions
• -40 to 125°C Operating temperature range
