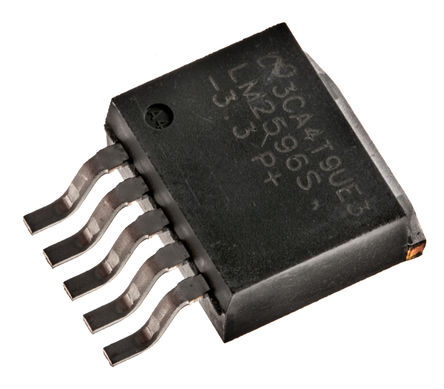

LM2596S-3.3/NOPB -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

LM2596S-3.3/NOPB

仓库库存编号：

1564609

技术数据表：

(EN)

The LM2596S-3.3/NOPB is a SIMPLE SWITCHER? low component count Step-down Regulator provides all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. This regulator is available in fixed output voltages of 3.3V version and requiring a minimum number of external components, this monolithic integrated circuit voltage regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2596 series operates at a switching frequency of 150kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. A standard series of inductors are available from several different manufacturers optimized for use with this regulator. This feature greatly simplifies the design of switch-mode power supplies.

• Requires only 4 external components
• Excellent line and load regulation specifications
• TTL shutdown capability
• High efficiency
• Uses readily available standard inductors
• Thermal shutdown and current limit protection
