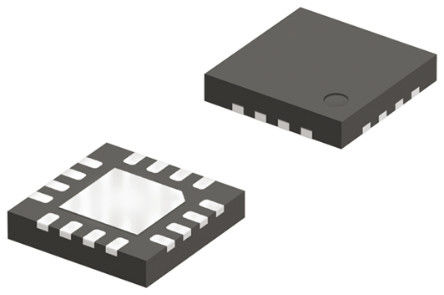

The LDC1314RGHT is a 4-channel 12-bit Inductance to Digital Converter (LDCs) for inductive sensing solutions. With multiple channels and support for remote sensing, the LDC1314 enables the performance and reliability benefits of inductive sensing to be realized. The products are easy to use, only requiring that the sensor frequency be within 1kHz and 10MHz to begin sensing. The wide 1kHz to 10MHz sensor frequency range also enables use of very small PCB coils. The LDC1314 offers well-matched channels, which allow for differential and ratiometric measurements. This enables designers to use one channel to compensate their sensing for environmental and aging conditions such as temperature, humidity and mechanical drift.
- Easy-to-use - minimal configuration required
- Measure up to 4 sensors with one IC
- Multiple channels support environmental and aging compensation
- 35μA Sleep mode power consumption
- 200nA Shutdown mode power consumption
- Support internal or external reference clock
- Immune to DC magnetic fields and magnets
传感与仪器, 测试与测量, 消费电子产品, 车用, 便携式器材
