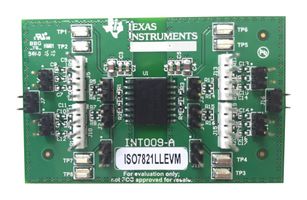

The ISO7821LLEVM from Texas Instruments is a high-performance isolated dual LVDS bidirectional buffer evaluation module. The evaluation module, featuring isolated dual LVDS buffer has 100 ohm differential termination at input and output. It can also support accurate measurement of eye diagram and common mode termination at output.
High performance isolated dual LVDS buffer with 100Mbps support
2.25V to 5.5V input and output side voltage
Provision to measure timing parameters accurately
Provision for output common mode termination
Evaluation module is tested for the device functionality
