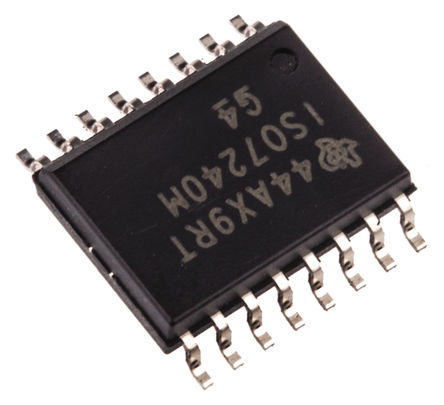

ISO7240MDW -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

ISO7240MDW

仓库库存编号：

1703241

技术数据表：

(EN)

The ISO7240MDW is a quad channel 150Mbps Digital Isolator with multiple channel configurations and output enable functions. This device has a logic input and output buffers separated by TI's silicon dioxide isolation barrier. Used in conjunction with isolated power supplies, this isolator blocks high voltage, isolate grounds and prevent noise currents from entering the local ground and interfering with or damaging sensitive circuitry. The ISO7240 has all four channels in the same direction. The C option devices have TTL input thresholds and a noise-filter at the input that prevents transient pulses from being passed to the output of the device. The M option devices have CMOS VCC/2 input thresholds and do not have the input noise-filter or the additional propagation delay. The isolator has an input disable function on pin 7 and a selectable high or low failsafe-output function with the CTRL pin.

• 4kV ESD protected
• 1ns Maximum low channel-to-channel output skew
• 2ns Maximum low pulse-width distortion
• High electromagnetic immunity
• 1ns Typical Low jitter content
• Green product and no Sb/Br
