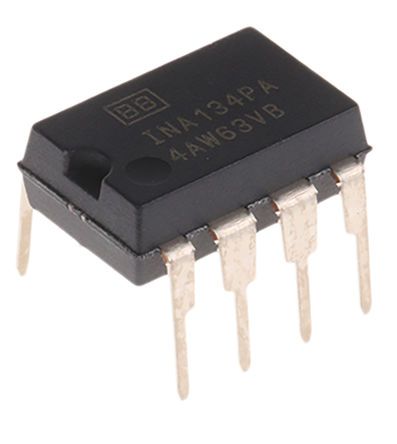

The INA134PA is an audio differential Line Receiver consisting of high performance op-amps with on-chip precision resistors. This receiver is fully specified for high performance audio applications and has excellent ac specifications, including low distortion 0.0005% at 1kHz and high slew rate 14V/μs, assuring good dynamic response. In addition, wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. The dual version features completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded. The INA134 receiver's on-chip resistors are laser trimmed for accurate gain and optimum common-mode rejection. Furthermore, excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over-temperature. Operation is guaranteed from ±4V to ±18V.
- 0.0005% at f=1kHz Low distortion
- 3μs to 0.01% Fast settling time
- 2.9mA Maximum low quiescent current
- 90dB High CMRR
- Green product and no Sb/Br
