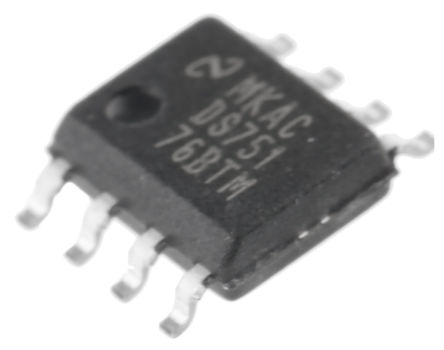

The DS75176BTM/NOPB is a high-speed differential TRI-STATEbus Line Transceiver designed to meet the requirements of EIA standard RS485 with extended common mode range (+12 to -7V), for multipoint data transmission. In addition, it is compatible with RS-422. The driver and receiver outputs feature TRI-STATE capability, for the driver outputs over the entire common mode range of +12 to -7V. Bus contention or fault situations that cause excessive power dissipation within the device are handled by a thermal shutdown circuit, which forces the driver outputs into the high impedance state. DC specifications are guaranteed over the 0 to 70°C temperature and 4.75 to 5.25V supply voltage range.
- 22ns Driver propagation delay
- Thermal shutdown protection
- 70mV Typical receiver hysteresis
- Meets EIA standard RS485 for multipoint bus transmission and is compatible with RS-422
- Green product and no Sb/Br
