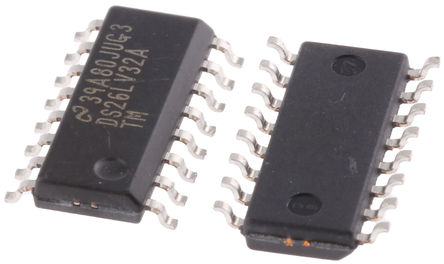

The DS26LV32ATM/NOPB is a CMOS quad Differential-line Receiver that meets the requirements of both TIA/EIA-422-B and ITU-T V.11. The CMOS DS26LV32AT features typical low static ICC of 9mA which makes it ideal for battery powered and power conscious applications. The TRI-STATE enables, EN and EN*, allow the device to be active High or active Low. The enables are common to all four receivers. The receiver output (RO) is guaranteed to be High when the inputs are left open. The receiver can detect signals as low as ±200 mV over the common mode range of ±10V. The receiver outputs (RO) are compatible with TTL and LVCMOS levels.
4ns Maximum receiver skew
10ns Maximum transition time
6.5k ESD tolerance (HBM)
Standard microcircuit drawing (SMD) 5962-98585
Receiver OPEN input failsafe feature
30mW Typical low power CMOS design
Interoperable with existing 5V RS-422 networks
Industrial and military temperature range
Conforms to TIA/EIA-422-B (RS-422) and ITU-T V.11 recommendation
