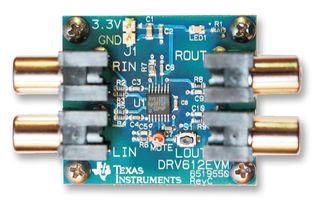

The DRV612EVM is an customer evaluation module demonstrates the capabilities and operation of the DRV612 integrated circuit. The DRV612 is a single ended, 2Vrms stereo line driver designed to reduce component count, board space and cost. It is ideal for single supply electronics where size and cost are critical design parameters. The DRV612 does not require a power supply greater than 3.3V to generate its 5.6Vpp output, nor does it require a split rail power supply. The DRV612 is designed using DirectPathTM technology, which integrates a charge pump to generate a negative supply rail that provides a clean, pop free ground biased output. The DRV612 is capable of driving 2Vrms into a 600R load. DirectPathTM technology also allows the removal of the costly output dc blocking capacitors.
- Two channel evaluation module (Double sided, plated through PCB layout)
- 2VRMS line output
- Single ended or balanced analog input
- No output capacitor required
- Featured with shutdown button
- Populated EVM board
